How to Hierarchical Query, Parents, Children and Their Cycles

This is a three-part Series
  1. How to Hierarchical Query, Parents, Children and Their Cycles
  2. How To Create Report in Oracle APEX based on Hierarchical Query
  3. How to use Hierarchical Query in Tree Plugin

Part-1 How to Hierarchical Query, Parents, Children and Their Cycles

Almost every one on this planet like trees right. Some of us like them as essential part of the world ecological system while others have created a very peculiar taste for it, like the timber mafia and the likes.

Usually you would imagine a tree standing up , however , programmers usually think of trees up-side-down,weird hmm... till it all make sense.😇

An Example of a Hierarchy is an Organization chart representing a hierarchy of employees.

First, Know your terminology.
  • You can have multiple trees in a hierarchical table.
  • Node
    • A row in a table that represents a specific entry in a hierarchical tree structure.
  • Root [node]
    • The uppermost node/Starting Point in a hierarchical structure.
    • It has no parent. and only one root in any given tree
  • Parent [node]
    • A node that is one level up in a tree. It has a child node below it.
  • Child [node]
    • A node that is one level down in a tree. It has a parent node above it.
  • Leaf [node]
    • A node at the lowest levels with no children. As is analogous with the leaf of a tree there is nothing beyond it.
    • Leaf Nodes do not all need to be at the same level, but must be without children.
  • Level
    • A layer of nodes. From the Root and Traversing(hopping from one node to another) through Its children, on each hop of Node downards is the next Level.


Here is what we gonna do:

  1. The Foremost Clauses, Operators and The Template Query
  2. Research into Data to find How to Construct your Hierarchy
  3. A Little Extra Detail

The Foremost Clauses, Operators and The Template Query

The Foremost Clauses and Operators:

  • The START WITH condition1
    • All rows that satisfy START WITH condition1 are considered root rows.
    • If you don't specify the START WITH clause, all rows are considered root rows.
  • CONNECT BY condition2 clause and The PRIOR operator
    • condition2 must contain the PRIOR operator, which is used to identify columns from the parent row,
    • condition2 cannot contain a subquery.
    • PRIOR is used to connect each child row to its parent row by connecting manager_emp_id in the child to emp_id in the parent
  • The LEVEL pseudocolumn
    • Shows the Level of the current row in the Hierarchy
  • ORDER SIBLINGS BY Column;
    • Sorting at each level while ensuring that child nodes remain underneath their parents, at the same time preserving the hierarchy

The Template Query

The Template Query will cover the following:

  • Tree Traversal Using ANSI SQL,
  • Identifying the Number of Levels
  • Identifying Leaf Nodes
  • Finding the Path to a Node
  • Ordering Hierarchical Data


If You Use the Template Query You would at least know what is going on with the Hierarchy, You will get Enough Information to see the Hierarchy.
Code
Select LEVEL, LPAD('  ',3*(LEVEL - 1)) || Column AS  Alias,
  DECODE(CONNECT_BY_ISLEAF, 1, 'TRUE', 'FALSE') IS_LEAF,
 TRIM(LEADING '>' FROM
            TRIM(LEADING '=' FROM SYS_CONNECT_BY_PATH(Column, '=>'))) As Path
from
 Table t
START WITH Condition1
CONNECT BY Condition2
ORDER SIBLINGS BY Column;
Uses

  • LEVEL  => display which Level is the Current row on.
  • CONNECT_BY_ISLEAF => pseudocolumn that returns 1 if the current row is a leaf, and returns 0 if the current row is not a leaf
  • LPAD('  ',3*(LEVEL - 1)) ||  => to have a nice Indented Display with each level
  • TRIM(LEADING '>' FROM  TRIM(LEADING '=' FROM SYS_CONNECT_BY_PATH(Column, '=>'))) => to have a nice display From the Root Node to the Current Node.
  • ORDER SIBLINGS BY Column; => for Ordering on a Column and ensuring that child nodes remain underneath their parent
I have used the scott[y] from Star Trek 😉 , schema throughout the article
Just plugin the Table and Columns Names to see the Result


Select LEVEL,
       DECODE(CONNECT_BY_ISLEAF, 1, 'TRUE', 'FALSE') IS_LEAF,
       LPAD('  ', 3 * (LEVEL - 1)) || t.ename Name,
       TRIM(LEADING '>' FROM
            TRIM(LEADING '=' FROM SYS_CONNECT_BY_PATH(t.ename, '=>'))) Path,
            CONNECT_BY_ROOT t.ename as "Top Manager"

  from emp t
 START WITH t.mgr is NULL
CONNECT BY PRIOR t.empno = t.mgr
 ORDER SIBLINGS BY t.ename;


PRIOR is used to connect each child row to its parent row by connecting manager_empno in the child to empno in the parent

Research into Data to find How to Construct your Hierarchy

Now it's time play around and research into data to see how will you construct your hierarchy.

  • Finding Root Nodes
  • Finding the Connection/Relationship between Nodes
  • Finding a Node's Immediate Parent
  • Finding Leaf Nodes


Finding Root Nodes

For Finding Root Nodes, We know that Root [node] The uppermost node/Starting Point in a hierarchical structure which has no parent
So I need employee which has no manager and hence t.mgr is NULL

Select t.empno ,t.ename , t.mgr
 FROM emp t
 where
  t.mgr is NULL

This will form the Starting base for my Hierarchical query.
As
START WITH t.mgr is NULL


Finding the Connection/Relationship between Nodes

As we know that each employee has a manager ,  except the root node ,  and the for each employee the manager(empno) is stored in the mgr Column, so we can use this information to construct our relatioship of parent-child.

CONNECT BY PRIOR t.empno = t.mgr

Finding a Node's Immediate Parent


We use a simple self-join to find the immediate parent, i.e. each employee's Manager.

Select e.ename "Employee" , m.ename "Manager"
 FROM emp e JOIN emp m
 ON e.mgr = m.empno
 Order by m.ename

Finding Leaf Nodes

Here is a Co-related Subquery using the EXISTS operator, to get the employees who does not have children, i.e. who are only employees but not a manager and thus whose empno is not in the mgr Column.

Select *
 FROM emp e
 WHERE NOT EXISTS (SELECT 1 FROM emp t where e.empno = t.mgr)
Remember I used the CONNECT_BY_ISLEAF  in the Template Query , however , here we are talking about research in to data for preparing and comparison for validaty.


A Little Extra Detail

  • Finding the Number of Levels
  • Checking for Ascendancy/Finding in the Sub-Tree
  • Listing Multiple Root Nodes
  • Listing the Top Few Levels of a Hierarchy
  • Aggregating a Hierarchy
  • Identifying Cycles and ignoring it

Finding the Number of Levels

Here are a few queries to find

The Maximum depth of the Hierarchy
Select MAX(LEVEL)
  from emp t
 START WITH t.mgr is NULL
CONNECT BY PRIOR t.empno = t.mgr

The No of Nodes Per Level
Select LEVEL, COUNT(t.ename) NO_OF_NODES
  from emp t
 START WITH t.mgr is NULL
CONNECT BY PRIOR t.empno = t.mgr
 GROUP BY LEVEL;

Checking for Ascendancy/Finding in the Sub-Tree

To see if a  Node is Direct or Indirect Ascendant(Parent) of  a [Child/Descendant] Node.Let's say If we want to see if a Manager is a Direct or Indirect Manager of an Employee. For example, to see if Jones is a Manager(Direct/Indirect) of  Smith or Ward
 Select LEVEL,
       DECODE(CONNECT_BY_ISLEAF, 1, 'TRUE', 'FALSE') IS_LEAF,
       LPAD('  ', 3 * (LEVEL - 1)) || t.ename Name,
       TRIM(LEADING '>' FROM
            TRIM(LEADING '=' FROM SYS_CONNECT_BY_PATH(t.ename, '=>'))) Path,
            CONNECT_BY_ROOT t.ename as "Top Manager"

  from emp t
  WHERE t.ename = 'SMITH'
START WITH t.ename = 'JONES'
CONNECT BY PRIOR t.empno = t.mgr
 ORDER SIBLINGS BY t.ename;
Here we START WITH t.ename = 'JONES'  ANd Look for 'SMITH' in the Sub-tree , WHERE t.ename = 'SMITH'


Listing Multiple Root Nodes

For Example Finding the Topmost Manager of each department
Select LEVEL,
       DECODE(CONNECT_BY_ISLEAF, 1, 'TRUE', 'FALSE') IS_LEAF,
       LPAD('  ', 3 * (LEVEL - 1)) || t.ename Name,
       TRIM(LEADING '>' FROM
            TRIM(LEADING '=' FROM SYS_CONNECT_BY_PATH(t.ename, '=>'))) Path,
            CONNECT_BY_ROOT t.ename as "Top Manager"

  from emp t
 START WITH t.mgr is NULL
CONNECT BY t.mgr = PRIOR t.empno
and t.deptno != PRIOR t.deptno
 ORDER SIBLINGS BY t.ename;

by adding and t.deptno != PRIOR t.deptno found the top-most managers.

Listing the Top Few Levels of a Hierarchy


So Listing on the Top-Managers
Select LEVEL,
       DECODE(CONNECT_BY_ISLEAF, 1, 'TRUE', 'FALSE') IS_LEAF,
       LPAD('  ', 3 * (LEVEL - 1)) || t.ename Name,
       TRIM(LEADING '>' FROM
            TRIM(LEADING '=' FROM SYS_CONNECT_BY_PATH(t.ename, '=>'))) Path,
            CONNECT_BY_ROOT t.ename as "Top Manager"

  from emp t
  Where LEVEL <= 2
 START WITH t.mgr is NULL
CONNECT BY t.mgr = PRIOR t.empno
 ORDER SIBLINGS BY t.ename;

We used the Where LEVEL <= 2 to limit the query to only the First  2 Levels.

Aggregating a Hierarchy


For example, you may want to sum the salaries of all employees reporting to a specific employee
Select SUM(t.sal)
  from emp t
 START WITH t.ename = 'JONES'
CONNECT BY PRIOR t.empno = t.mgr
You may want to consider each employee as a root/Manager, and for each employee print out the sum of the salaries of all subordinate employees.

For Each Manager , The Sum of the Manager and  Subordinates Salary
 WITH
   T
AS
(
   SELECT
      CONNECT_BY_ROOT ENAME ENAME,
      SAL
   FROM
      EMP
   CONNECT BY
      MGR=PRIOR EMPNO
)
SELECT
   ENAME,
   SUM(SAL)
FROM
   T
GROUP BY
   ENAME;


 Select LEVEL,
       DECODE(CONNECT_BY_ISLEAF, 1, 'TRUE', 'FALSE') IS_LEAF,
       LPAD('  ', 3 * (LEVEL - 1)) || t.ename Name,
       TRIM(LEADING '>' FROM
            TRIM(LEADING '=' FROM SYS_CONNECT_BY_PATH(t.ename, '=>'))) Path,
            CONNECT_BY_ROOT t.ename as "Top Manager"

  from emp t

 --START WITH t.mgr is NULL
CONNECT BY PRIOR t.empno = t.mgr
 ORDER SIBLINGS BY t.ename;

For Each Manager , The Sum of its Subordinates Salary
WITH
   T
AS
(
  Select LEVEL,
       DECODE(CONNECT_BY_ISLEAF, 1, 'TRUE', 'FALSE') IS_LEAF,
       t.ename Name,
       CONNECT_BY_ROOT t.ename as Manager ,
       t.sal SALARY,
       TRIM(LEADING '>' FROM
            TRIM(LEADING '=' FROM SYS_CONNECT_BY_PATH(t.ename, '=>'))) Path
  from emp t
 --START WITH t.mgr is NULL
Where   CONNECT_BY_ROOT t.ename != t.ename
CONNECT BY PRIOR t.empno = t.mgr
 ORDER SIBLINGS BY t.ename
)
SELECT
   Manager,
   SUM(SALARY)
FROM
   T
GROUP BY
   Manager;


Here are the important Points

  •  --START WITH t.mgr is NULL , is commented, Remember when I said, If you don't specify the START WITH clause, all rows are considered root rows. Here is exactly the case , we are considering all rows and their Mangers
  • Where   CONNECT_BY_ROOT t.ename != t.ename, therefore , employee will consider itself in the salary computation.
  • If you find that the With Clause is not applicable in your situation, Just replace it with an Inline View in the from Clause.


Identifying Cycles and Ignoring it

When a node's child is also its parent , then their is a cycle in the Hierarchy.

  • To Ignore Cycle you can use the CONNECT BY NOCYCLE  clause.
  • To identify a Cycle you can use CONNECT_BY_ISCYCLE
    • pseudocolumn returns 1 if the current row has a child that is also its ancestor; otherwise, it returns 0
    • can be used only in conjunction with the CONNECT BY NOCYCLE  clause

September 24, 2017

How To Treat The NULL Vacuum

It make some sense as the vacuum is something devoid of matter, something we do not really know about its contents, As does the NULL in a database.

Here are a few points that need consideration as NULL plays the role of a double-edged sword in a database, providing a very efficient way to store unknown values , however not treated wisely could have a nastier effect especially, during data manipulation:

  • The Term null value is inaccurate as null indicates the lack of a value.
  • A null is as being a marker for a missing value that might never be known, might be determined later, or is not applicable.
  • Nulls can be stored in columns of any data type that are not restricted by NOT NULL or PRIMARY KEY
  • Nulls aren't equal (or unequal) to each other. You can't determine whether a null matches any other value, including another null, so the expressions NULL=any_value, NULL<>any_value, NULL=NULL, and NULL<>NULL are neither true nor false but unknown;
  • Use IS [NOT] NULL to detect a null;
  • Oracle treats an empty string ('') as a null
Select DECODE('',NULL, 'TRUE', 'FALSE') IS_NULL
From dual

With test as (Select '' as col from dual)
Select 'TRUE' IS_NULL
From test t
Where t.col is NULL

  • DISTINCT Treats all the nulls in a particular column as duplicates
  • For Sorting you can specify Order by col [NULLS (FIRST|LAST)]. If you don not specify and Sort by a column that contains nulls, the nulls will be either NULLS LAST if ASC , also remember ASC is the Default if not specified, and NULL FIRST if desc
  • Any computations involving a Null can result in Null
Select 12+3+NULL Sum
from dual
so better to use always
Select 12+3+NVL(NULL,0) Sum
from dual
  • Aggregate functions, such as COUNT(COLUM_HAVING_NULLS),SUM, MAX, MIN, AVG, etc., all ignore NULLs while  COUNT(*) and GROUPING doesn't ignore NULLS
  • If the grouping column in a GROUP BY clause contains nulls, all the nulls are put in a single group
  • Nulls affect the results of joins, the Inner Joins and The Left and Right Outer Joins.
  • Nulls can cause problems in subqueries. I  suggest to do some googling on the topic as you can get some weird results just by placing keywords in different positions in your query. For example,
    WHERE NOT col IN (SELECT col FROM table1); can yeild different results from WHERE  col NOT IN (SELECT col FROM table1);
  • In Set Operations, UNION,MINUS,INTERSECT will treat nulls as duplicates, Except for the UNION ALL which treats each null as different.
select 1, NULL from dual
Union
select 2, NULL from dual
Union
Select 1, NULL from dual;

select 1, NULL from dual
Union
select 2, NULL from dual
Minus
Select 1, NULL from dual;

select 1, NULL from dual
Union
select 2, NULL from dual
Intersect
Select 1, NULL from dual;

  • Sometimes we call the same function twice in our query without any need thereof.Here is a tip when NVL is used in the where clause.
NVL(PRIMARY_QTY,0) > 0
Means 3 Things
  1. Nulls  converted to Zero(0) and
  2. PRIMARY_QTY is > 0
  3. so in the Select we can just use  PRIMARY_QTY no need to use NVL(PRIMARY_QTY,0) PRIMARY_QTY , since it's already filtered out

Some Resources

Tuesday 15 August 2017

August 15, 2017

How To Install Coming Soon Packaged Sample Applications

How To Install Coming Soon Packaged Sample Applications

Installing one of the Package Sample Application should be a piece of cake , right. While , I wonder why I find most often facing the situation where, when I try to install any of the Packaged Applications, It will throw Coming Soon into my face.😰

That's how a Computer would treat you nowadays, till you find your self in the abyss called troubleshooting mother lode of code and it definitely involves some head-scratching and hair pulling.

It may be due to faulty installation or whatever went kaput. I don't want to poke around to find the root cause.  I just wanted to be able to install the packaged applications , and to heck with troubleshooting the stars. And by the way I hate the way people describe space, it seems like a whole lot of emptiness out there, and its not even air.😛

So I was stuck with this

Packaged Sample Applications with Coming Soon
Packaged Sample Applications with Coming Soon

So, I do not want you to go on a wild goose chase. Just Follow the instructions below :

Connect to you apex user.
You can find your apex user by querying the database for users , However, it would require a user with dba privileges to connect to the database.
sqlplus sys/password@service_name as sysdba
e.g.
sqlplus sys/s@xe as sysdba


Select * From dba_users;

Your Apex user should have a name something like  APEX_#VERSION# ( EX : APEX_05000).

Now Connect to APEX_05000
sqlplus APEX_050000/s@xe

Find out your apex installation folder, where you unzipped you apex.zip file.e.g D:\apex folder
Run the following script:
@D:\apex\core\wwv_flow_pkg_app_tab.sql

Now Run the following script:
@D:\apex\core\packaged_apps\install_packaged_apps.sql

By now,  you will get the Installation button working as shown below,Go to your Packaged application Installation screen and voilà  , bob's your uncle.

Packaged Sample Applications with Coming Soon
Packaged Sample Applications with Install Application Button





Tuesday 4 July 2017

July 04, 2017

Oracle APEX Plugin KPI Numeric Cards, Dynamic


Apex 5 Universal theme, introduces many options to show information in the form of cards , badges. These components are mostly templates , and as Apex 5 comes with templates options, so does these templates. Although, some generic declarative option are there to style the information, to really customize the styling would need the use of custom javascript and css.
Therefore, I tried to Introduce these KPI cards to display Numeric targets information with the ease of declaratively styling as much as possible.
Example usage scenarios
  • Departmental Actual Revenue/Profit  against stipulated targets/goals/objectives.

The Features

  • Responsive
  • 3 Templates
  • Custom No data Found Message
  • Page Items to submit
  • PPR(AJAX) refreshing in real-time
  • Fully Dynamic Options and data(query) values

Demo Application

Github Repository

KPI Numeric Card Illustration

KPI Numeric Card Illustration
KPI Numeric Card Illustration

Using the Query and Column Attributes

Query Template

For Each row of the query,the plugin will generate a separate KPI Numeric Card.
The Query Columns does not need to be in any particular order as the plugin provided column selection mechanism  as following:
KPI Numeric Card Colums Attributes
KPI Numeric Card Colums Attributes

Each KPI Card has Five chunks of data identified by the 5 columns of the query. For example:
Select 'Department A' as Title, 30000 as value, 'up' as trend, '$' as symbol, 'GOAL SET: $25,000/MONTH' as footer from dual
  • Title Column:
    • Data Type: String
    • Required & Possible values include a string like 'First Title' or null
    • If Standard without Title Template is used , then null value can be used in this column and Title can be included in the footer column
  • Value Column:
    • Data Type: Number
    • Required & Possible values include a Number or 0(zero) so use NVL(null,0)
  • Symbol Column:
    • Data Type: string
    • Optional & Possible values include a string like 'First Title' or null
  • Trend Column:
    • Data Type: String &
    • Optional & Possible values are:
      • up
      • down
      • flat
  • Footer Column:
    • Data Type: string
    • Optional


Plugin Attributes

Attribute values are comma-separated values, and each value corresponds to each KPI Card, so e.g. the Card Font Color(s) values provided: #3498DB,#3498DB
  • So first & 2nd KPI Card Font color will have #3498DB value. As can be seen that only 2 values have been provided, So if the query returned more than 2 rows i.e. KPI Cardss, then the third chart will have the default color.
Plugin Options
Option Description Type Default
Template Template Selection for each KPI Card Selection(LOV) Standard Template
Column Span(s) Grid Column Span for each KPI Card Comma separated number values 3
Height(s) Height of the Card Region Body.Some Times due to the styling , large font-sizes , the card region does not expand vertically with font sizes, therefore specifying card size for the region would result in a consistent look. Comma separated number values(pixels) 148
Title Bar Background Color(s) Background color of the title bar Comma separated or colors/hex-coded values ''
Title Bar Font Color(s) Font color of the title Comma separated RGB values #fff
Title Bar Font Size(s) Fonts Size for the Title. Comma separated number values(pixels)
Card Background Color(s) Fill color of the Card Region body. Comma separated colors/hex-coded values
Card Font Color(s) Font color of the Symbol & Value. Comma separated colors/hex-coded values
Card Font Size(s) Font size of the Symbol & Value. Comma separated number values(pixels)
Footer Font Color(s) Font color of the Footer. Comma separated colors/hex-coded values
Footer Font Size(s) Font size of the Footer. Comma separated number values(pixels)
Footer Font Size(s) number of decimal places to show Comma separated number values

KPI Numeric Card Templates
KPI Numeric Card Templates

Column Spans
Column Spans 5,4,3






Thursday 22 June 2017

June 22, 2017

Hard-coding vs. Soft-coding in PL/SQL and SQL


Thanksto Steven Feuerstein for his awesome work on pl/sql.
This post is mostly summary and compilation with useful links at the end.
All the files relating to hard-coding can be downloaded from here.🔗

Hard-coding

Hard- coding, usually involves using Literal values, would be fine if nothing ever changed in our applications, only and only if:
  • Requirements, Tables' Definitions, Rules & Formulas and Configuration Constants  stayed the same...
Whenever anything changes, you have to find all the places you explicitly coded it, and fix them.

Soft Coding

– Rather than explicitly code values, rules and algorithms, make them "soft" or dynamic –changeable and settable at runtime.
and here is my definition:

Soft coding involves a way to code the definition , values, rules and algorithms which incorporate such a level of flexibility and manageability that any foreseeable technical and business requirements could be met by it ,without any significant change in the original code.

The concept is
  • Repeat nothing: become allergic to redundant repetition.
  • Aim for a "single point of definition"(SPOD) in everything you write and thus a great tool for refactoring.
  • Information hiding(Data Encapsulation) – Hide, hide, hide: values, implementations, workarounds
    • – Avoid exposing the implementation details of formulas,rules, algorithms, data access.
    • – The more you hide, the more flexibility you have.

  • "Never" and "Always" in software
    • – It's never going to stay the same.
    • – It's always going to change.

So Lets take quick look on the various hard-coding and its solutions.
Literal values
  • – Especially language-specific literals, Limits, Statuses,Flags etc. should only be in SPOD
  • Code files:
    • thisuser*.*
    • soft_code_literals.sql
Solution
  • :Hide literals behind:
      • Create a Packaged Constant, assigning the value to that constant.
        • Fast on Retrieval
        • Some time the additional typing need by placing package name as the prefix, however this can be avoided if the constants are used within the package and thus can be defined in the package body and referenced by the constant name directly
      • Create a Function that hides and returns the value.
        • Pros are
          • Encapsulation Hides the value in the Package body
          • and dynamic, easy to refactor
        • Cons are Performance Overhead
          • The function can be deterministic as the value is predetermined(never changing) and there are no external dependencies in the function , and which can add to optimized performance
        • Still more expensive to call a function than to reference a constant
      • Soft code in tables , Store and manage the value in a database table , soft code it.
          • – The Most Dynamic
          • – More complex code
          • – More overhead, but caching can avoid this problem.
Constrained declarations
  • – Every declaration of the form VARCHAR2(N) to be a bug. – Unless it is the SPOD for that type.
  • Code Files:
    • fullname.pks
    • plsql_limits.pks
    • string_tracker3.*
Solution:
  • Instead, anchor the declaration back to its "source".
    • %TYPE for variables based on columns
    • %ROWTYPE for records based on table/cursor
    • –  OR if you can't anchor back to a DB element? use  SUBTYPES for all applications-specific types
      • Critical when working with complex structures like collections of records, and nested collections.
      • Example of the hardcoded values
        l_full_name VARCHAR2(100);
        l_big_string VARCHAR2(32767);
      • And using subtype
        CREATE OR REPLACE PACKAGE employee_rp As
        SUBTYPE fullname_t IS VARCHAR2 (1000);

        Then in your code use
        l_full_name employees_rp.full_name_t;
        l_big_string plsql_limits.maxvarchar2;
    Rules and formulas
    • – Especially the "trivial" ones, more critical than repeated literals
    • – They will change & get more complex.
    • Code Files:
      • get_time.sql
      • sf_timer.*
    Solution
      • – Learn to recognize rules and formulas. Often they are missed, especially when simple.
      • – Hide the logic behind functions.
    • Example: Never trust a rule!
      • DBMS_UTILITY.GET_TIME andGET_CPU_TIME (10g) use to compute elapsed time down to the hundredth of a second
      SQL statements
      • - Every SQL statement that you write is a hard-coding! difficult to contemplate
      • – PL/SQL is, in fact, the best place for SQL.
      • – Follow the principles; they are your guide.
      • – Don't repeat anything!
      Solution
      • :hide SQL inside a data access layer.
        • Think of SQL as a service that is provided to you, not something you write.
        • – Or if you write it, you put it somewhere so that it can be easily found, reused, and maintained.
        • This service consists of programs defined in the data access layer.Known as
          • –  table APIs,
          • –  transaction APIs,
          • –  or data encapsulation
        • these programs contain all the intelligence about business transactions and underlying tables.
        • Pros:
          • Change/improve my implementation with minimal impact on my application code.
            • – The underlying data model is constantly changing.
            • – We can depend on Oracle to add new features.
            • – We learn new ways to take advantage of PL/SQL.
          • Vastly improve my SQL-related error handling.
            • – Do you handle dup_val_on_index for INSERTs,too_many_rows for SELECT INTOs, etc?
          • Greatly increase my productivity
            • – I want to spend as much time as possible implementing business requirements.
        • Cons: checkout the stackoverflow Tapi Vs Xapi discussion in the links at the end
        • For each table, we have these generated packages:
          • – <table>_CP for DML
          • – <table>_QP for queries
          • – <table>_TP for types
          • And the Coded – <table>_XP "extra stuff" package with custom SQL logic and related code
        • It must be very consistent, well-designed and efficient or it will not be used.
        • Best solution: generate as much of the code as possible.
          • – And any custom SQL statements should be written once and placed in a standard container (usually a package).
      Hide Algorithmic details
      • Assume that whatever you are working on will change – and hide it behind an API.
      • – Logging errors
      • – Function result cache
      • – Manipulating collection contents
      • Code Files:
        • 11g_emplu.pkg
        • string_tracker3.*
        • cc_smartargs.pkb
      • – Example: error logging mechanism
        • We usually, but not always, want to write error information out to a log table.
      WHEN NO_DATA_FOUND THEN
      l_code := SQLCODE;
      INSERT INTO errlog
      VALUES ( l_code, 'No company for id ' || TO_CHAR ( v_id ), 'fixdebt', SYSDATE, USER );
      WHEN OTHERS THEN
      l_code := SQLCODE; l_errm := SQLERRM;
      INSERT INTO errlog
      VALUES (l_code, l_errm, 'fixdebt', SYSDATE, USER );
      RAISE;
      END;

        • Now using a shared, generic logging utility , we re-write based on the Quest Error Manager, so You do less work and get more information
        • Download form Here: Quest Error Manager
      WHEN NO_DATA_FOUND
      THEN
      q$error_manager.register_error (text_in => 'No company for id ' || TO_CHAR ( v_id ));
      WHEN OTHERS
      THEN
      q$error_manager.raise_unanticipated (name1_in => 'COMPANY_ID', value1_in => v_id);
      END;

        • The Oracle11g function result cache
          • The optimal way to query and cache data changes over time.
            • – Explicit and implicit cursors
            • – FORALL and BULK COLLECT
            • – And now the function result cache
          • With the Result Cache,provided the same(matching) inputs as parameters the  function return the data previously cached with
      FUNCTION onerow (employee_id_in IN employees.employee_id%TYPE)
      RETURN employees%ROWTYPE RESULT_CACHE;

        • Manipulating collection contents
          • Collections are Oracle's version of arrays in PL/SQL.
          • – A relatively complicated but critically important data type.
          • Best to hide collection references behind procedures and functions.
          • – Especially when you work with string-indexed and multi-level collections.

      Further Reading

      PDFs
      Say-Goodbye-to-Hard_2D00_Coding.pdf
      Hardcoding 1
      Hard Coding 2

      Hardcoding

      YouTube -Hard Coding Playlist
      https://www.toadworld.com/platforms/oracle/b/weblog/archive/2011/09/15/avoiding-hard-coded-values-in-views
      https://jeffkemponoracle.com/2010/03/02/please-hard-code-your-literals/
      http://pretius.com/how-to-avoid-hard-coding-in-your-plsql-code/

      SQL hardcoding , TAPIs, XAPIs & Data Access Layer

      https://jeffkemponoracle.com/2010/06/23/tapi-vs-xapi/
      https://stackoverflow.com/questions/3092041/understanding-the-differences-between-table-and-transaction-apis?answertab=active#tab-top

      Wednesday 3 May 2017

      May 03, 2017

      Oracle APEX Plugin Circliful Gauge , Fully Dynamic


      The underlying concept is to show some kind of target /usage percentage with or without absolute values,Icon or Target Percentage.

      Example usage scenarios
      • Departmental Performance/Cost percentages,  e.g. Dept A 30%, Dept B 70%
      • Orders Completed by Department either absolute values or percentages
      • Statistic like World Population by continent showing absolute values or proportions(percentages)

      The Features

      • Fully Responsive
      • Font awesome icons supported
      • 3 Templates
      • Custom No data Found Message
      • Page Items to submit
      • PPR(AJAX) refreshing in realtime
      • Fully Dynamic Options and data(query) values
      • Half Circle Option
      • Animation

      Demo Application

      Github Repository

      Circliful Gauge Illustration

      Circliful Gauge Illustration  Fig 1
      Circliful Gauge Illustration  Fig 1
      Circliful Gauge Illustration  Fig 2
      Circliful Gauge Illustration  Fig 2

      Using the Query Template and Column Combinations

      Query Template

      For Each row of the query,the plugin will generate a separate gauge chart.
      The Query template is positional & progressive(see below column combinations) and must be followed strictly, Like the dynamic list query template. Here is an example with explanation :
      Each gauge has Five chunks of data identified by the 5 columns of the query. For example:
      Select 'First Title' as Title, 30 as percent, 80 as TargetPecent , 'fa-plane' as icon,  ‘$ 5 M’ as displayValue from dual

      • First Column:
        • Title
        • Data Type: String
        • Required & Possible values include a string like 'First Title' or null
      • 2nd Column:
        • Percentage
        • Data Type: Number
        • Required & Possible values include a Number or 0(zero) so use NVL(null,0)
        • This is the main column on which the circumferential segment of the circle/ring is highlighted
      • 3rd Column:
        • Target Percentage
        • Data Type: String &
        • Optional & Possible values include a string like Number or 0(zero) so use NVL(null,0) , 0  means not provided.
      • 4th Column:
        • Font Awesome Icon
        • Data Type: string
        • Optional & Possible values include a string like 'First Title' or null
      • 5th Column:
        • Display Value
        • Data Type: string
        • Optional & Possible values include a string like 'First Title' or null
        • This value will be display instead of the percentage column value
      Column Combinations
      The Query template is progressive and thus for each combination more columns would be required.
      So here are some combinations
      • Title with Percentage
        • Only the First 2 columns
          Select 'First Title' as Title, 30 as percent
          are required
      • Title with Percentage & Target Percentage
        • Only the First 3 columns
          Select 'First Title' as Title, 30 as percent, 80 as TargetPecent
            are required
      • Title with Percentage ,Target Percentage &  Icon
        • Only the First 4 columns
          Select 'First Title' as Title, 30 as percent, 80 as TargetPecent , 'fa-plan' as icon

          are required
      • Title with Percentage ,Target Percentage ,Icon & display Value
        • All the 5 columns
          Select 'First Title' as Title, 30 as percent, 80 as TargetPecent , 'fa-plan' as icon,‘$ 5 M’ as displayValue

          are required
      • Title with Percentage &  Display Value
        • All the 5 columns
          Select 'First Title' as Title, 30 as percent, 0 as TargetPecent , null as icon,‘$ 5 M’ as displayValue

        • In order to skip the middle columns use 0 for Number type column and null for string type
      • Title with Percentage , Target Percentage &  Display Value
        • All the 5 columns
          Select 'First Title' as Title, 30 as percent, 80 as TargetPecent , null as icon,‘$ 5 M’ as displayValue

        • In order to skip the middle columns use 0 for Number type column and null for string type
      • Title with Percentage ,icon &  Display Value
        • All the 5 columns
          Select 'First Title' as Title, 30 as percent, 0 as TargetPecent , ‘fa-plane’ as icon,‘$ 5 M’ as displayValue

        • In order to skip the middle columns use 0 for Number type column and null for string type
      There is also an icon attribute. which is comma-separated font-awesome icons. Each chart looks for an icon in the query, if ‘null’ icon is specified , then it will extract the icon from the icon(s) attribute and display it if there is any specified.
      Since man is slave to habits , and habits yield routines and routines willingly or unwillingly becomes patterns. The whole process of following the query template and column combinations is the concept of following a pattern, and the goal is to get the columns in the required order and data type in APEX designer .
      Make sure that in APEX Page designer the order is also aligned with the query template as following:
      Query Template Columns Order
      Query Template Columns Order

      Plugin Attributes

      Attribute values are comma-separated values, and each value corresponds to each chart, so e.g. the Inner Circle Color values provided: #3498DB,#3498DB
      • So first & 2nd chart inner circle color will have #3498DB value. As can be seen that only 2 values have been provided, So if the query returned more than 2 rows i.e. gauge charts, then the third chart will have the default values from the table below.
      Some Attributes can have a values of comma-separated pair of semi-colon separated values, e.g This value is from the World Population example.
      Title From Top(Y);Left(X) (s) : 25;75,25;75,25;75,25;75,25;75,25;75
      Plugin Options
      Option Description Type Default
      Chart Template Template Selection for each Chart Selection(LOV)
      Column Span(s) Grid Column Span for each chart Comma separated number values 3
      Title CSS Style(s) CSS inline style you want to add to your title text caret/power(^) separated css style for each chart title ''
      Title Color(s) font color of the title Comma separated RGB values #666
      Title From Top(Y);Left(X) (s) Vertical & horizontal position of the title Comma separated pairs, each pair is semi-colon separated integers null
      Animation Step(s) can be 1 to 10,slow to fast the animation should be Comma separated number values 5
      Percent Text Size font size of the percentage text Comma separated number values 22
      Percentage Value From Top(Y);Left(X) (s) Vertical & horizontal position of the percentage text Comma separated pairs, each pair is semi-colon separated integers 100
      Half Circle whether to draw half circle Comma separated N/Y values N
      Percent Font Color color of the percentage Comma separated RGB values #aaa
      Percentage Decimals Precision number of decimal places to show Comma separated number values 0
      Target Value Font Color(s) Color of the target percentage & circumferential segment Comma separated RGB values #2980B9
      Target Value Font Size(s) font size of the target percentage Comma separated number values 17
      Icon(s) Font-awesome icons to display Comma separated font-awesome icons
      Icon Size(s) font size of the icon(s) Comma separated number values 30
      Icon Color(s) color of the icon Comma separated RGB values #ccc
      Icon Position(s) position of the icon (top, bottom, left, right or middle) Comma separated predefined values
      Percent Circumferential Segment Color(s) color of the Percent Circumferential Segment Comma separated RGB or string values #3498DB
      Percent Circumferential Segment Width(s) width of Percent Circumferential Segment  border Comma separated number values 15
      Inner Circle Size(s) Size of inner circle Comma separated number values 28.5
      Inner Circle Color(s) Fill color of inner circle Comma separated RGB or string values none
      Middle Circle Color(s) Fill color of Middle Circle Comma separated RGB or string values none
      Outer Circle Color(s) Fill color of Outer Circle Comma separated RGB or string values #eee
      Outer Circle Border Width(s) Width of Outer Circle border Comma separated number values 15
      Text Below aligns the Tiltle centered below the circle Checkbox Selection Not Selected
      Animation whether circle should be animated initially Checkbox Selection Selected
      Animation InView Animation only when the chart is in view. i.e in focus Checkbox Selection Not Selected
      Animation with decimals Shows decimals while animating instead of only at the end of the animation Checkbox Selection Not Selected
      Show Percent To show/hide the  percentage(%) sign Checkbox Selection Selected
      No Percent Sign To show/hide the percentage(%) sign Checkbox Selection Not Selected
      Multi Percentage Changes the view for certain column combinations Checkbox Selection Not Selected

      Chart Templates
      Chart Templates

      Column Spans
      Column Spans 5,4,3





      Sunday 23 April 2017

      April 23, 2017

      Oracle APEX dynamic Action Plugin Atom Calculator

      Atom Calculator is a dynamic action plugin that allows users to perform calculations in real time during data entry by providing a popup calculator for the Input and get the final result.


      Donation

      Your support means a lot.
      Donate

      Changelog


      1.0 - Initial Release


      Install

      • Import plugin file "dynamic_action_plugin_com_planetapex_atom_calculator.sql" from src  directory in the git Hub repository  into your application
      • (Optional) Deploy the CSS/JS files from "src" directory on your webserver and change the "File Prefix" to webservers folder.

      Preview



      Oracle Apex Atom Calculator Plugin
      Oracle Apex Atom Calculator Plugin

      Demo Application

      Atom Calculator Application

      Plugin Features

      • 2 Views to choose from.
      • Custom Calculator Font Awesome Icon.
      • Text Alignment
      • Various On Show events like click, focus
      • 10 Display Positions to choose from.
      • 3 Themes to choose from.
      • 3 Button Styles.
      • Custom offset to adjust the display position.
      • Button Press Animation.
      • Keyboard Numeric Keypad for calculation.
      • Running Total Cacluations.
      • Read Only option.
      • Up to 8 decimal points rounding.

      Plugin Settings


      Atom Calculator Views

      Users have 2 options for the atom calculator view:
      • Basic view displays calculator without the percentage, PlusMinus and Keys.
      • Extended view will display all the keys.

      Styling

      Themes and Button Styles can be used to style the Atom calculator.
      There are 3 themes provided:
      • Light
      • Dark
      • Matetial
      There are 3 Button Styles:
      • No Style, which is Flat
      • Style 1
      • Style 2

      Show Method

      Selects the method when the atom calculator displays.
      Available options include:



      On item click
      The atom calculator pop-up displays when the item is clicked.
      On icon click
      The atom calculator pop-up displays when the icon is clicked.
      On item and icon click
      The atom calculator displays when the item or icon is clicked.
      On focus
      The atom calculator pop-up displays as soon as the item receives focus.


      Display Position

      Position of atom calculator is relative to text input.
      • First value is name of main axis, and
      • Second value is whether the atom calculator is rendered as
        • Left(Leftwards)
        • Right(Rightwards)
        • Up(Upwards)
        • Bottom(Downwards)
      Available options include:
      • Bottom Left
      • Bottom Center
      • Bottom Right
      • Right Bottom
      • Right Top
      • Top Left
      • Top Center
      • Top Right
      • Left Top
      • Left Bottom
      Examples
      Right Top will set atom calculator's position from right side upwards of text input.

      Monday 10 April 2017

      April 10, 2017

      How to use Font Awesome Animation Library in Applications

      Since Oracle Apex (Apex ) already incorporates the amazing font awesome icons library . Its time to add some dazzle to those static icons. Font awesome already has a few animation parlor tricks up it's sleeves. However, I found that adding some of these extra animations wouldn't hurt.

      So lets dive in
      • Get the Font Awesome Animation Library from download .
      • Upload the minified CSS under the Shared Components =>  Static Application Files
        Check out How to upload section in the How to add CSS Files to Applications.
      • Once uploaded, copy and remember the the Reference e.g.
        #APP_IMAGES#css/font-awesome-animation.min.css
      • Add Font Awesome Animation Library to the Application at the User Interface Level so that Its available through out the Application.
        Check out the User Interface Level section in How to add CSS Files to Applications.

      Using Font Awesome Animation

      Now, adding animation to the font awesome icon is a matter of adding the relevant CSS classes.
      Here are a few concepts:
      • To start animation on document load use "animated" class
      • To start animation on hover use "animated-hover" class
      • To start animation on hover over the parent element use  "faa-parent animated-hover" classes
      • For animation speed , not specifying any speed class would render as standard, or use "fa-slow" or "fa-fast".
      Here are the animation classes which you get from the website:
      • faa-wrench
      • faa-ring
      • faa-horizontal
      • faa-vertical
      • faa-flash
      • faa-bounce
      • faa-spin
      • faa-float
      • faa-pulse
      • faa-shake
      • faa-tada
      • faa-passing
      • faa-passing-reverse
      • faa-burst
      An example would be to use the following classes
      faa-tada faa-parent animated-hover fa-slow
      Font Awesome Animation can be applied to any component on the page, whether the component is using font awesome icon or not.
      Checkout this

      Demo Animated Application

      Applying Font Awesome Animation to a Button

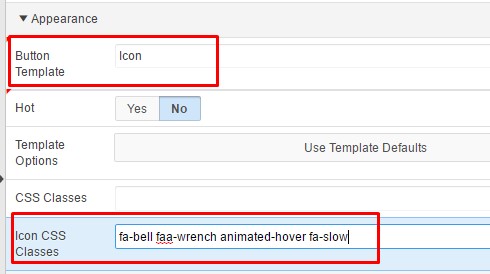

      Create 3 Buttons in a region  as following:

      APEX Font Awesome Animation


      APEX Font Awesome Animation
      APEX Font Awesome Animation
      APEX Font Awesome Animation


      Icon Only Animation

      Vista Theme
      If you want to animate the icon only  and not the parent i.e button element ,you can enter the font awesome icon class as well as the animation classes in the Button Attributes => Icon CSS Classes attribute as shown in the image above. e.g fa-bell faa-wrench animated-hover fa-slow

          OR you can assign static id to each button,  I have assigned gear id to a button,  and then Go to Page Attributes => Execute when Page Loads and add the following.

      apex.jQuery('#gear span').addClass('faa-spin animated fa-slow');



      Vita Theme Issue
      In Vita Theme, the Hover effect does not work. So I have devised a solution using jQuery
      As an example the button has the following attributes:
      id:bell
      Icon CSS Classes:fa-bell faa-wrench fa-slow

      Page Attributes => Execute when Page Loads and add the following.

      $('#bell')
      .on('mouseover', function () {
      $(this).find('span:first').addClass('animated');
      })
      .on('mouseout', function () {
      $(this).find('span:first').removeClass('animated');
      })



      APEX Font Awesome Button Animation
      Font Awesome Button Animation

      Applying Font Awesome Animation to Side Navigation Bar

      I am using the standard side bar navigation template. Since Standard templates do not allowing editing that’s why you have to copy and edit the new template.
      Go to Shared Components =>User Interface Section=> Templates => Copy Side Navigation Menu to Side Navigation Menu New => Edit Side Navigation Menu New template => Side Navigation Menu New => Execute when Page Loads
      and add the following:
      $('#t_TreeNav .a-TreeView-node').addClass('faa-pulse faa-parent animated-hover fa-slow');

      Make it your default template.
      Go to Shared Components => User Interface => User Interface Attributes => Edit User Interface => Navigation Menu => List Template => Side Navigation Menu New
      Apex Font Awesome Side Menu Navigation Animation
      Font Awesome Side Menu Navigation Animation
      I have to say that imagination is your limit and practice your tool. So e.g if you wanted to use different animation for each navigation item

      You may

      • Create a New Side Bar Navigation Template and use the A01...A10 substitutions in the relavent places to be later replaced by animation classes from the list query.

      OR
      •  Use javascript e.g set a class  lets say anim-item  along with animation classes for all items in the list definition :

      Shortened Code snippet
        select null as lvl 'Date Picker Types' as label,
            'fa-calendar anim-item ==faa-pulse animated-hover fa-slow==' as icon,
      Union All
      select null as lvl,
             'Another Page' as label,
             'fa-cog anim-item ==faa-spin animated-hover fa-slow==' as icon,

      • then in Side Navigation Menu New  Template => Execute when Page Loads
         use jquery selector $('anim-item') and foreach , extract the class string and remove the  ==faa-spin animated-hover fa-slow==  from class of that item and then traverse through parents till you reach the Side bar Navigation Item and addClass  faa-spin animated-hover fa-slow to it , so each  Item will have it's own animation.


      Side Navigation Bar Icons Only Animation


      If you want to animate the Icons only then keep the standard Side Navigation Template , However use a List based on the following query :

      select null as lvl,
             'Date Picker Types' as label,
             'f?p=' || :APP_ID || ':10:' || :APP_SESSION as target,
              10 as c,
             'fa-calendar faa-pulse animated-hover fa-slow' as icon,
              null as ia,
             null as iaa,
             null as attribute1,
             null as attribute2,
              null as attribute3,
             'title' as attribute4
      from dual
      Union All
      select null as lvl,
             'Another Page' as label,
             'f?p=' || :APP_ID || ':11:' || :APP_SESSION as target,
              11 as c,
             'fa-cog faa-spin animated-hover fa-slow' as icon,
              null as ia,
             null as iaa,
             null as attribute1,
             null as attribute2,
              null as attribute3,
             'title' as attribute4
      from dual
      Union All
      select null as lvl,
             'Yet Another Page' as label,
             'f?p=' || :APP_ID || ':12:' || :APP_SESSION as target,
              12 as c,
             'fa-bell faa-wrench animated-hover fa-slow' as icon,
              null as ia,
             null as iaa,
             null as attribute1,
             null as attribute2,
              null as attribute3,
             'title' as attribute4
      from dual
      Union All
      select null as lvl,
             'Almost there' as label,
             'f?p=' || :APP_ID || ':13:' || :APP_SESSION as target,
              13 as c,
             'fa-bicycle faa-passing animated-hover fa-slow' as icon,
              null as ia,
             null as iaa,
             null as attribute1,
             null as attribute2,
              null as attribute3,
             'title' as attribute4
      from dual
      Union All
      select null as lvl,
             'Not So Far' as label,
             'f?p=' || :APP_ID || ':14:' || :APP_SESSION as target,
              14 as c,
             'fa-fighter-jet faa-horizontal animated-hover fa-slow' as icon,
              null as ia,
             null as iaa,
             null as attribute1,
             null as attribute2,
              null as attribute3,
             'title' as attribute4
      from dual
